Item description

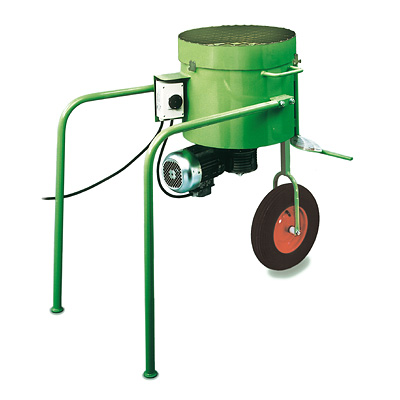

The mortar-mixing cart(2200) is designed to mix approx. 50 kg synthetic- or mineral-bound mortar homogeneously in 2 or 3 minutes for processing.
Because of the total height, the mixing container can be emptied directly into a barrel or wheelbarrow. For this, open the draining shutter in the bottom of the mixing drum while the stirring unit is revolving and the mortar falls from the mixing drum into the barrel.
The barrel should have a maximum height of 65 cm ~25 5/8 inch.
The mortar-mixing cart can easily be cleaned. Simply take the stirring unit out of the mixing drum by lifting the square driceshaft of the gear unit.
Transportation of the mortar-mixing cart is even possible in a pessenger car because you can easily dismantle the legs of the cart.
Technical data:
nominal voltage: 230 V/50 Hz
nominal capacity: 1,1 kW
nominal current: 9,0 A
protective system: IP 54
drive of stirring unit: 35 rpm
Measurements:
height: 105 cm ~42 inch
width: 70 cm ~28 inch
length: 110 cm ~44 inch
